Low-Voltage 48V Magnetic Modular Track Systems
How Belgian luminaire manufacturers revolutionized commercial and residential lighting layouts with ultra-slim 48-volt magnetic busbars, interchangeable spotlights, and intelligent digital controls.
The Paradigm Shift from 230V Mains Track to 48V DC
For decades, retail and gallery spaces depended upon bulky 3-phase 230-volt mains tracks. While functional, the substantial dimensions of mains track fixtures (typically 35 mm wide by 35 mm deep track channels, plus cumbersome transformer adaptors on every head) visually dominated clean ceilings.
Belgian engineering firms—including Delta Light with their pioneering magnetic platforms and Wever & Ducré with their sleek track ranges—fundamentally transformed this landscape by adopting 48V Direct Current (DC) low-voltage infrastructure. By running 48V SELV (Safety Extra Low Voltage) along concealed copper bus conductors, luminaire profiles shrank dramatically to cross-sections as narrow as 18 mm wide and 25 mm high.
Magnetic Coupling and Tool-Free Reconfiguration
The defining breakthrough of 48V track systems is the mechanical-magnetic locking interface. Neodymium (NdFeB) high-remanence magnets are integrated into the base of each fixture module. When inserted into the channel, the magnet draws the module upward with positive tactile feedback, seating gilded spring contacts firmly against the copper conductor rails.
An integrated secondary mechanical catch ensures fixtures remain secure against accidental impacts or seismic vibrations in public facilities. Gallery curators or store managers can reposition spotlights, swap narrow 15° beam lenses for wide 45° flood inserts, or slide continuous opal lines along the track in seconds—without requiring licensed electricians or specialized hand tools.
Control Topologies: DALI-2, Casambi, and Individual Addressing
Despite sharing a single 48V power feed, modern Belgian magnetic tracks offer comprehensive granular control. The track profile integrates dedicated digital data lines alongside the direct current busbars:
- DALI-2 / D4i Protocol: Allows each individual spotlight module to carry its own unique 64-bit DALI address. In high-end retail or museum spaces, twenty spotlights on the same continuous 10-meter track can be dimmed to distinct luminous values independently.
- Integrated Casambi BLE Mesh: For historical renovations where adding two-wire DALI control cables back to a central automation rack is impractical, miniature Bluetooth Low Energy chips are potted directly into the adapter base of each module. Scenes are tuned wirelessly from an iOS or Android tablet.
- Tunable White (2700K – 5000K): Dual-channel LED engines allow circadian modulation throughout the day in corporate environments without changing physical hardware.
| Insert Module Type | Optical Configuration | Power Consumption | Beam Angle Spectrum | Primary Purpose |
|---|---|---|---|---|
| Micro-Gimbal Spotlight | TIR Lens + Honeycomb Louver | 7 W – 14 W | 12°, 24°, 36°, 50° | Artwork accent, merchandise highlighting |
| Linear Dot Cluster | Dark-Light Micro-Louvers | 10 W – 18 W | 30° Longitudinal | Conference table downlight, glare-free tasking |
| Continuous Opal Insert | Nanotech Satin Diffuser | 15 W / meter | 110° Diffuse | General ambient illumination, circulation zones |
| Suspended Micro-Pendant | Conical Brass Baffle | 6 W – 10 W | 25° Focused Pool | Reception counters, hospitality tabletops |
Specification Trade-offs: Comparing 48V vs. 230V Systems
System Strengths
- Minimalist Scale: Slim 18 mm aperture merges unobtrusively into concrete ceilings and timber battens.
- Instant Flexibility: Rapid seasonal rearrangement of light accents without operational downtime.
- Electrical Safety: 48V SELV eliminates electric shock hazards during module adjustments.
- Unified Visual Language: Accommodates spots, lines, wall-washers, and pendants within one channel.
Engineering Constraints
- Centralized Driver Capacity: 48V DC power supplies must be accurately sized for peak inrush currents and voltage drop over long runs.
- Distance Limitations: Distance between the remote driver and the track feed should typically not exceed 15–20 meters using 2.5 mm² wiring.
- System Propriety: Magnetic module locking geometry is vendor-specific; modules cannot be cross-mixed between different manufacturer brands.
Architectural Mounting Variants: Recessed, Surface, Suspended

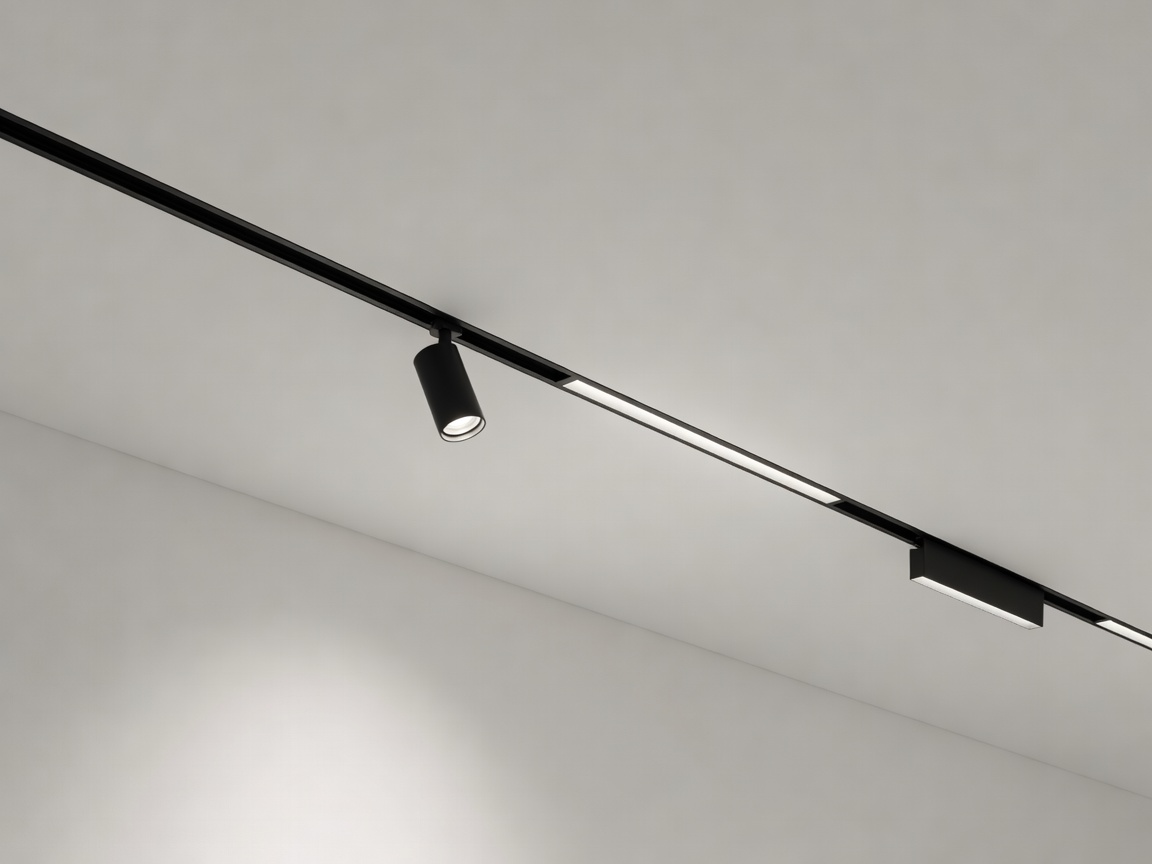

Belgian track profiles are engineered with interchangeable mounting clips. In raw exposed concrete soffits, surface-mounted black anodized tracks provide a bold architectural statement. In refined residential settings, trimless recessed channels sit flush with 12.5 mm drywall. For open industrial spaces with exposed ductwork, suspended profiles featuring indirect uplight modules illuminate the ceiling plane while focusing direct spots downward.
